MD200 Modern Double Cutaway
![](https://mitchellguitars.com/wp-content/uploads/2019/10/MD200SG-angle-1600.png)
Available Finishes:
|
|
The affordable Mitchell MD200 offers a double cutaway basswood body and a maple neck.
For a modern sound, we include a rail-style ceramic humbucker in the bridge and mini-rail humbucker in the neck position. They both provide a more consistent magnetic pull versus standard pole pieces, enhancing overall tone and sustain.
High-ratio tuners allows for precise tuning control. The MD200 also includes a flatter neck radius, which allows for easier fretboard gymnastics. For even more sustain and articulation, the MD200 comes with string-through body construction.
Available in Seaglass (SG), Orange (OR), Electric Pink (EP), Island Blue Satin (IBS), Black (BK), White (WH)
HIGHLIGHTS
![Mitchell MD200SG H/mini-H pickup Mitchell MD200SG H/mini-H pickup](https://mitchellguitars.com/wp-content/uploads/2019/10/MD200SG-pickups.jpg)

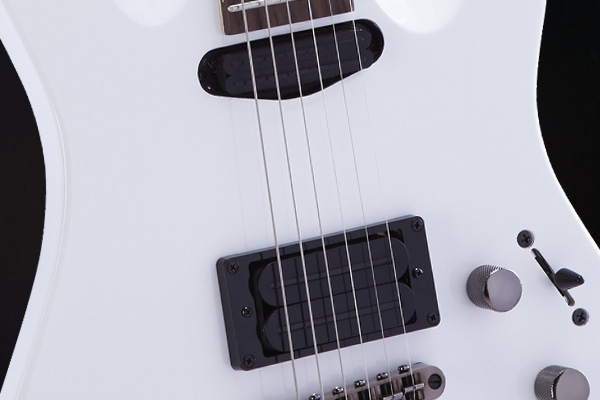

Like other guitars in our MD series, the MD200 features H/mini-H rail-style Paraffin-dipped pickups that reduce microphonics while eliminating tonal dropouts.
![MD200BK String-through body design and bridge MD200BK String-through body design and bridge](https://mitchellguitars.com/wp-content/uploads/2016/04/MD200BK-bridge.jpg)
String-through body design and traditional, adjustable TOM-style bridge for outstanding sustain and solid intonation.
![MD200EP Deep Bevel Cutaway MD200EP Deep Bevel Cutaway](https://mitchellguitars.com/wp-content/uploads/2019/10/MD200EP-cutaway-bevels.jpg)
The Deep Bevel Cutaway (DBC) design of the MD200 allows for complete upper fretboard access.
![MD200BK Black Nickel hardware MD200BK Black Nickel hardware](https://mitchellguitars.com/wp-content/uploads/2016/04/MD200BK-head-stock.jpg)
Black Nickel hardware adds to the MD200s killer looks.
The affordable Mitchell MD200 offers a double cutaway basswood body and a one-piece maple neck.
For a modern sound, we include a rail-style ceramic humbucker in the bridge and mini-rail humbucker in the neck position. They both provide a more consistent magnetic pull versus standard pole pieces, enhancing overall tone and sustain. High-ratio tuners allows for precise tuning control. The MD200 also includes a flatter neck radius, which allows for easier fretboard gymnastics. For even more sustain and articulation, the MD200 comes with string-through body construction.
HIGHLIGHTS
![Mitchell MD200SG H/mini-H pickup Mitchell MD200SG H/mini-H pickup](https://mitchellguitars.com/wp-content/uploads/2019/10/MD200SG-pickups.jpg)
Like other guitars in our MD series, the MD200 features H/mini-H rail-style Paraffin-dipped pickups that reduce microphonics while eliminating tonal dropouts.
![MD200BK String-through body design and bridge MD200BK String-through body design and bridge](https://mitchellguitars.com/wp-content/uploads/2016/04/MD200BK-bridge.jpg)
String-through body design and traditional, adjustable TOM-style bridge for outstanding sustain and solid intonation.
![MD200EP Deep Bevel Cutaway MD200EP Deep Bevel Cutaway](https://mitchellguitars.com/wp-content/uploads/2019/10/MD200EP-cutaway-bevels.jpg)
The Deep Bevel Cutaway (DBC) design of the MD200 allows for complete upper fretboard access.
![MD200BK Black Nickel hardware MD200BK Black Nickel hardware](https://mitchellguitars.com/wp-content/uploads/2016/04/MD200BK-head-stock.jpg)
Black Nickel hardware adds to the MD200s killer looks.
FEATURES
MD200
- Modern basswood double-cutaway body and a maple neck
- H/mini-H pickup configuration with paraffin-dipped, rail-style ceramic pickups reduce microphonics and unwanted feedback while mitigating tonal dropouts
- String-through body design and traditional, adjustable TOM-style bridge for outstanding sustain and solid intonation
- High-tensile strength fretwire for durability and smooth playing
FEATURES
MD200
- Modern basswood double-cutaway body and a maple neck with rosewood fretboard
- H/mini-H pickup configuration with paraffin-dipped, rail-style ceramic pickups reduce microphonics and unwanted feedback while mitigating tonal dropouts
- String-through body design and traditional, adjustable TOM-style bridge for outstanding sustain and solid intonation
- High-tensile strength fretwire for durability and smooth playing
SPECIFICATIONS
BODY
BODY WOOD: Basswood
BODY STYLE: Flat Top Modern Rock Double Cutaway
TOP WOOD: Basswood
BODY BINDING: N/A
AVAILABLE FINISHES: Seaglass (SG), Orange (OR), Electric Pink (EP), Island Blue Satin (IBS), Black (BK), White (WH)
ELECTRONICS
PICKUP CONFIGURATION: Mini-H, H
NECK PICKUP: Mini-Rail Humbucker Ceramic
MIDDLE PICKUP: N/A
BRIDGE PICKUP: Rail Humbucker Ceramic
CONTROLS: Vol 1, Vol 2, Master Tone
SWITCHING: 3-Way Blade Switch
COIL-TAP: Pull Tone Pot (Both PU)
POTENTIOMETERS: 500K Vol, 250K Tone
HARDWARE
TUNERS: 14:1 Die-Cast
NUT: Black Graphite
BRIDGE: TOM-Style; Strung-Thru Body
HARDWARE FINISH: Black Nickel
PICKGUARD: N/A
NECK
NECK WOOD: Rock Maple
NECK SHAPE: Shallow “C”
NECK STYLE: Bolt-On
NECK FINISH: Tsung Oil
NECK BINDING: N/A
NUMBER OF FRETS: 24
FRETWIRE: Tall/Narrow Medium Jumbo
SCALE LENGTH: 25.5″ (648 mm)
RADIUS: 13.75″ (350 mm)
WIDTH AT NUT: 1.7″ (43 mm)
WIDTH AT LAST FRET: 57 mm
THICKNESS AT 1st FRET: 20 mm
THICKNESS AT 12th FRET: 22 mm
INLAY: Offset Abalone Dot
TRUSS ROD: 2-Way Adjustable (4mm Hex Wrench)
Before delivery to our dealers, all Mitchell electric guitars receive a complete stateside setup and quality control inspection to ensure exceptional playability.
Due to ongoing product development, specifications are subject to change without notice.
SPECIFICATIONS
BODY
BODY WOOD: Basswood
BODY STYLE: Flat Top Modern Rock Double Cutaway
TOP WOOD: Basswood
BODY BINDING: N/A
AVAILABLE FINISHES: Seaglass (SG), Orange (OR), Electric Pink (EP), Island Blue Satin (IBS), Black (BK), White (WH)
ELECTRONICS
PICKUP CONFIGURATION: Mini-H, H
NECK PICKUP: Mini-Rail Humbucker Ceramic
MIDDLE PICKUP: N/A
BRIDGE PICKUP: Rail Humbucker Ceramic
CONTROLS: Vol 1, Vol 2, Master Tone
SWITCHING: 3-Way Blade Switch
COIL-TAP: Pull Tone Pot (Both PU)
POTENTIOMETERS: 500K Vol, 250K Tone
HARDWARE
TUNERS: 14:1 Die-Cast
NUT: Black Graphite
BRIDGE: TOM-Style; Strung-Thru Body
HARDWARE FINISH: Black Nickel
PICKGUARD: N/A
NECK
NECK WOOD: Rock Maple
FRETBOARD WOOD: Indian Rosewood
NECK SHAPE: Shallow “C”
NECK STYLE: Bolt-On
NECK FINISH: Tsung Oil
NECK BINDING: N/A
NUMBER OF FRETS: 24
FRETWIRE: Tall/Narrow Medium Jumbo
SCALE LENGTH: 25.5″ (648 mm)
RADIUS: 13.75″ (350 mm)
WIDTH AT NUT: 1.7″ (43 mm)
WIDTH AT LAST FRET: 57 mm
THICKNESS AT 1st FRET: 20 mm
THICKNESS AT 12th FRET: 22 mm
INLAY: Offset Abalone Dot
TRUSS ROD: 2-Way Adjustable (4mm Hex Wrench)
Before delivery to our dealers, all Mitchell electric guitars receive a complete stateside setup and quality control inspection to ensure exceptional playability.
Due to ongoing product development, specifications are subject to change without notice.
CONTROL PANEL AND SWITCHING
KNOBS
KNOB 1: Neck PU Volume
KNOB 2: Bridge PU Volume
KNOB 3: Master Tone
COIL TAP: Pull Tone Pot
![MD200 Controls MD200 Controls](https://mitchellguitars.com/wp-content/uploads/2016/07/MD200_Controls.jpg)
PICKUP SELECTION
POSITION 1: Neck Humbucker
POSITION 2: Neck/Bridge Humbuckers
POSITION 3: Bridge Humbucker
![Control Illustration Mitchell Electric MD200 Control Illustration Mitchell Electric MD200](https://mitchellguitars.com/wp-content/uploads/2016/07/Control-Illustration-md-ms.png)
CONTROL PANEL AND SWITCHING
KNOBS
![MD200 Controls MD200 Controls](https://mitchellguitars.com/wp-content/uploads/2016/07/MD200_Controls.jpg)
KNOB 1: Neck PU Volume
KNOB 2: Bridge PU Volume
KNOB 3: Master Tone
COIL TAP: Pull Tone Pot
PICKUP SELECTION
![Control Illustration Mitchell Electric MD200 Control Illustration Mitchell Electric MD200](https://mitchellguitars.com/wp-content/uploads/2016/07/Control-Illustration-md-ms.png)
POSITION 1: Neck Humbucker
POSITION 2: Neck/Bridge Humbuckers
POSITION 3: Bridge Humbucker
